互联网服务 2012 年 8 月 23 日

自动备份OpenShift数据到Dropbox(2)—自动备份脚本和cron任务的设置

本文介绍了如何使用Dropbox Uploader实现网站数据自动备份并上传到Dropbox。备份流程主要包括备份数据库、备份网站文件、将数据库和网站文件打包上传到Dropbox以及添加cron任务实现定期备份等步骤。作者提供了一个简单的例子,可以实现通用OpenShift网站文件和数据库的备份,也可用于普通的VPS数据备份。读者只需根据自己的需求修改相应配置即可。最后,作者还建议添加日志功能以供日后分析。
配置完Dropbox Uploader之后就可以编写脚本实现自动备份网站的数据了。开始之前,我们先理清一下所有流程,网站自动备份到Dropbox大致需要以下几个步骤:
  • 备份数据库;
  • 备份网站文件;
  • 将数据库和网站文件打包上传到dropbox;
  • 添加cron任务自动完成上面的步骤,实现定期备份。
另外最好有日志功能供日后分析. 我写了个简单的例子,稍作修改可以实现通用OpenShift网站文件和数据库的备份,也可用于普通的VPS数据备份。点击 这里下载
下面是具体的配置:
#!/bin/sh
#
# Dropbox Backup Cron Job Script v0.1
#
# Copyright (C) 2012 http://shuyz.com
#
# This script is expected to run on OpenShift, you may port it to other VPS by doing a little coding.
#

# 1: debug  0: run
debug=0

# Change the configuration below according to your apps
#
# OpenShift 应用名称
appname=apps
# 需要备份的目录路径,如果目录有多个,请用空格分割
src_folder=~/${appname}/repo/php
# 新建数据库的时候OpenShift的数据库信息
db_host=127.1.2.3
db_port=3306
db_user=admin
db_pass=pass123
db_name=wordpress
# dropbox uploader脚本的绝对路径
dropbox_uploader=~/${appname}/repo/dropbox/dropbox_uploader.sh
# 备份到Dropbox的哪个目录
remote_loc=/backup/openshift
# 配置完成!


# You may just keep the configuration below
bak_time=$(date +%Y%m%d%H%M%S)
tmp_folder=~/${appname}/tmp/bak_${bak_time}/
file_name=bak_${bak_time}.zip
bak_file=~/${appname}/tmp/${file_name}
db_file=${tmp_folder}${db_name}.sql
log_file=~/${appname}/logs/dropbox_bak_${bak_time}

# save message to log file or echo message on the screen
function showmsg() {
    if [ ${debug} -eq 1 ]; then
        echo [$(date +%Y/%m/%d.%H:%M:%S)] "$1"
    else
        if [ -f ${log_file} ]; then
            echo [$(date +%Y/%m/%d.%H:%M:%S)] "$1" >> ${log_file}
        else

            echo [$(date +%Y/%m/%d.%H:%M:%S)] "$1" > ${log_file}
        fi
    fi
}

# remove temporary files and exit with error code
function endnow() {
    showmsg "remove temporary files and directories"
    if [ -d ${tmp_folder} ]; then
        rm -rf ${tmp_folder}
    fi

    if [ -f ${bak_file} ]; then
        rm ${bak_file}
    fi

    # exit
    if [ "$1" -eq 0 ]; then
        showmsg "backup succeed!"
        exit 0
    else
        showmsg "backup failed!"
        exit 1
    fi
}

# check the exit code of previous command
function checkresult() {
    if [ $? -ne 0 ]; then
        showmsg "$1"
        endnow 1
    fi
}

showmsg "creating backup directory on ${tmp_folder}"
mkdir ${tmp_folder}
checkresult "failed to create backup directory"

showmsg "exporting databases: ${db_name}"
mysqldump -h${db_host} -p${db_port} -u${db_user} -p${db_pass} ${db_name} > ${db_file}
checkresult "failed to export database"

showmsg "archiving files in folder ${src_folder}"
cd ${src_folder}
checkresult "cannot change working directory to ${src_folder}"
zip -rvy ${tmp_folder}files.zip * >> ${log_file}
checkresult "failed to archive files"

showmsg "pack all files and database as ${bak_file}"
cd ${tmp_folder}
checkresult "cannot change working directory to ${tmp_folder}"
zip -rvy ${bak_file} * >> ${log_file}
checkresult "failed to pack all files"

showmsg "uploading ${bak_file} to dropbox"
$dropbox_uploader upload ${bak_file} ${remote_loc}/${file_name} >> ${log_file}
checkresult "upload failed!"

endnow 0
配置完成之后上传到OpenShift,然后用SSH登录测试一下运行是否正常,如果出现错误,你可以将配置里的debug设为1,这样在运行是就可以看到错误提示了;另外OpenOpenhift的logs文件夹里也有详细的日志,
backup test

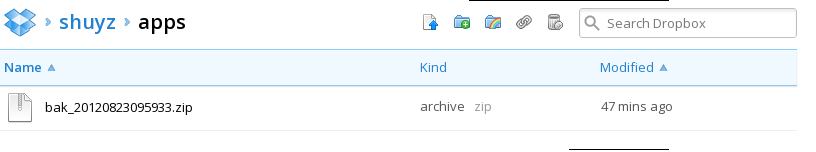

file in dropbox

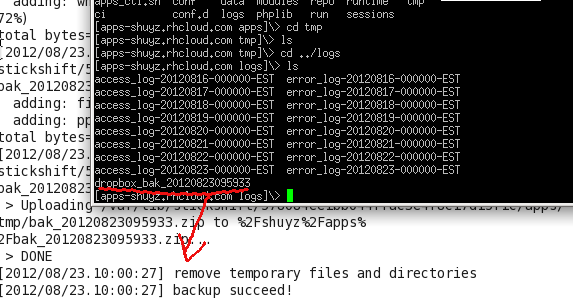

backup logs
测试没有问题之后就可以添加一个cron任务实现自动备份了。首先给OpenShift添加cron模块,然后将脚本拷贝到cron下对应的daily, weekly等文件夹。建议在这些文件夹下使用软链接到真实脚本,这样比较方便修改脚本。比如设置一个每周一次的整站备份,只需要在weekly文件夹下建立一个软链接到备份脚本。
# 定时备份
ln -s ~/{appname}/repo/dropbox/bak_all_weekly.sh ~/{appname}/repo/.openshift/cron/weekly/dropbox_backup
softlink to backup script
注意的是如果cron任务的目录下有jobs.allow文件的话,还需要将脚本名称添加到这个白名单文件里,否则脚本不会运行。

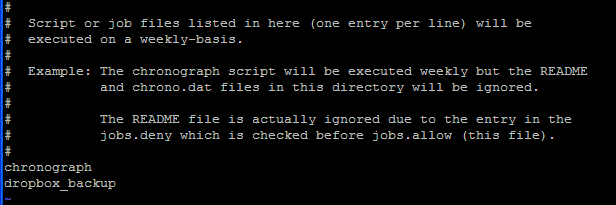

cron script whitelist
到此全部配置完成,脚本每周会定时备份到Dropbox,下面是一张备份的文件列表:

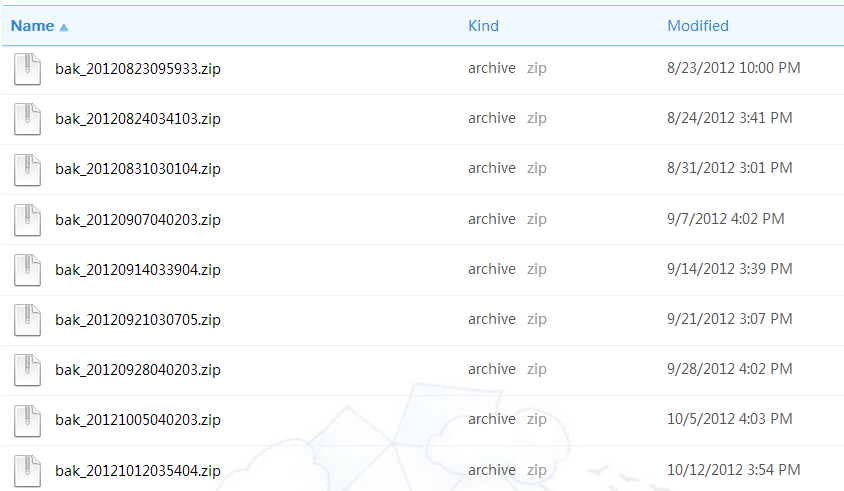

backup file list
2013-06-24更新: 由于OpenShift对路径的细微调整,请将下载的脚本中的”appname”赋值为”app-root”, 即”appname=app-root”.
